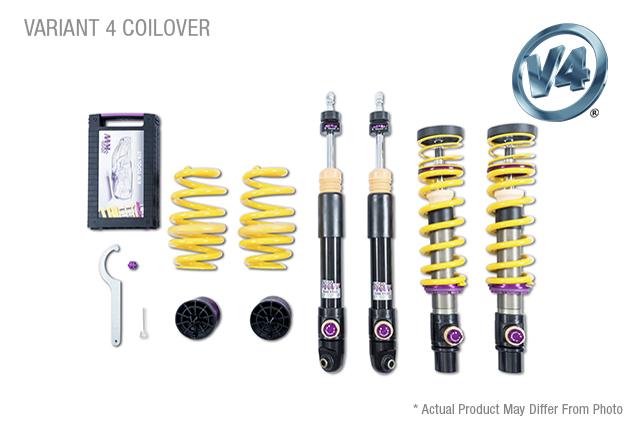

KW HLS 2 coilover Coilover kit V4 w. HLS 2 Hydraulic Lift System

3A7102AM

Stock: Backorder Available

AU$19,609.00 Inc GST
  • Height adjustable on the front and rear axles (threaded strut housings)
  • For cars which have electronic dampers, make sure they are shut down, Specific electronical damper shut-downs are available from KW, Please check our accessories list
  • Dampers are adjusted by easily operating adjustment wheels, Rebound is only adjustable if the top of the piston rod is accessible, This will depend on the vehicle construction
  • Aluminium suspensions struts

Description

Description

HLS 2

Hydraulic Lift System

HLS is available in two configurations, HLS 2 which is fitted on the front axles only or HLS 4 which can be attached to the front and rear axles and allows lifting of the entire vehicle. The hydraulic cylinder unit is located on the coilover body between the spring perch and spring. This allows for a mechanical advantage as there is no compression of the extended cylinder unit resulting in no unwanted additional suspension movement while driving.

Allows cars with low ground clearance to clear obstacles more easily.

Available as a complete kit including coilovers or as a conversion for existing coilover kit owners.

Can be activated from inside the vehicle via a LED position control switch or by optional remote, eliminating any need to interior wiring.

Can be activated while driving (up to 50mph)

Fast lifting - Maximum lift in 5 seconds with HLS 2

Fitment

Fitment

Make Model type Chassis Aspiration Cyl Drivetype
AUDI R8 (4S) 4S3, 42 07/2015- 4S Coupe Petrol 10 All-wheel Drive
AUDI R8 (4S) 4S3, 42 07/2015- 4S Coupe Petrol 10 All-wheel Drive
AUDI R8 (4S) Spyder 4S9, 42 05/2016- 4S Convertible Petrol 10 All-wheel Drive
AUDI R8 (4S) Spyder 4S9, 42 05/2016- 4S Convertible Petrol 10 All-wheel Drive
AUDI R8 (4S) Spyder 4S9, 42 05/2016- 4S Convertible Petrol 10 All-wheel Drive
AUDI R8 (4S) 4S3, 42 07/2015- 4S Coupe Petrol 10 All-wheel Drive
AUDI R8 (4S) 4S3, 42 07/2015- 4S Coupe Petrol 10 All-wheel Drive
AUDI R8 (4S) Spyder 4S9, 42 05/2016- 4S Convertible Petrol 10 All-wheel Drive
